FlowBar High Capacity Slot Diffusers


FlowBar High Capacity Slot Diffusers

Key Features

• Choice of 25mm, 38mm, 51mm, 63.5mm and 76mm slot widths
• Suitable for ceiling or sidewall applications
• Available in continuous lengths, curved sections and corner pieces
• Adjustable discharge pattern
• Secret fixing
• Matched plenum boxes





Introduction to FlowBar

Air Diffusion's FlowBar is an architecturally designed, high capacity linear slot diffuser. It is designed to combine a very high air handling capacity with maximum flexibility and is suitable for either ceiling or sidewall applications. The flexibility of the system can blend into a design or provide contrast with its striking, but simple design.

FlowBar satisfies both an Engineer's and Architect's requirements for designing an air distribution system that will be efficient in maintaining optimum room air conditions whilst inconspicuous in appearance.

FlowBar is available to be manufactured straight or curved, allowing the creation of stunning visuals that were never before possible.

Factory engineered plenum boxes are available, which ensure a trouble free installation and stated catalogue performance data is met.


Flange Styles

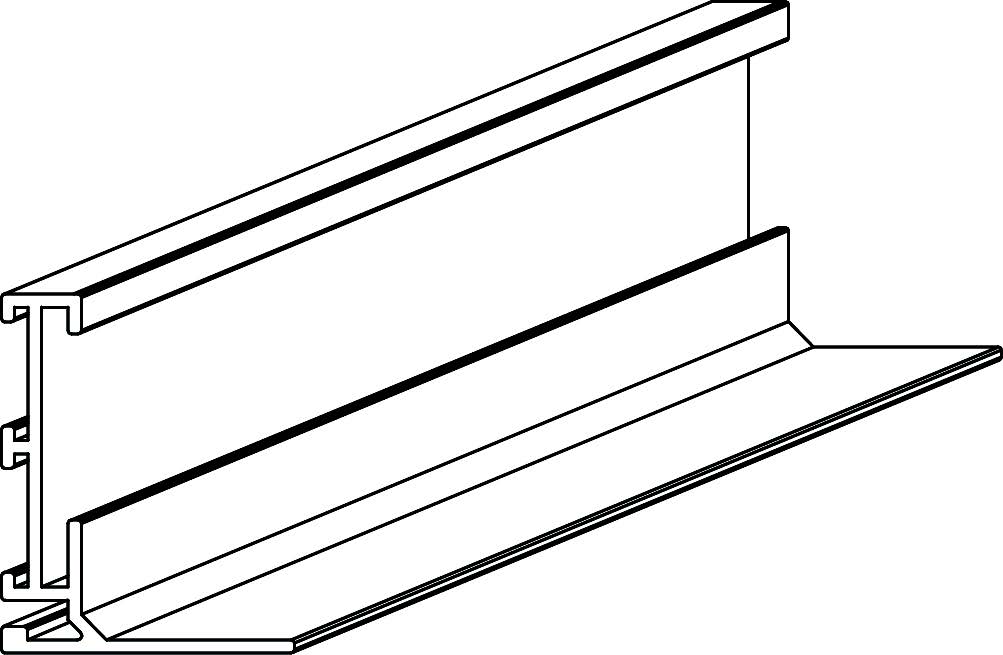

Type 22 - Shallow Plaster Frame

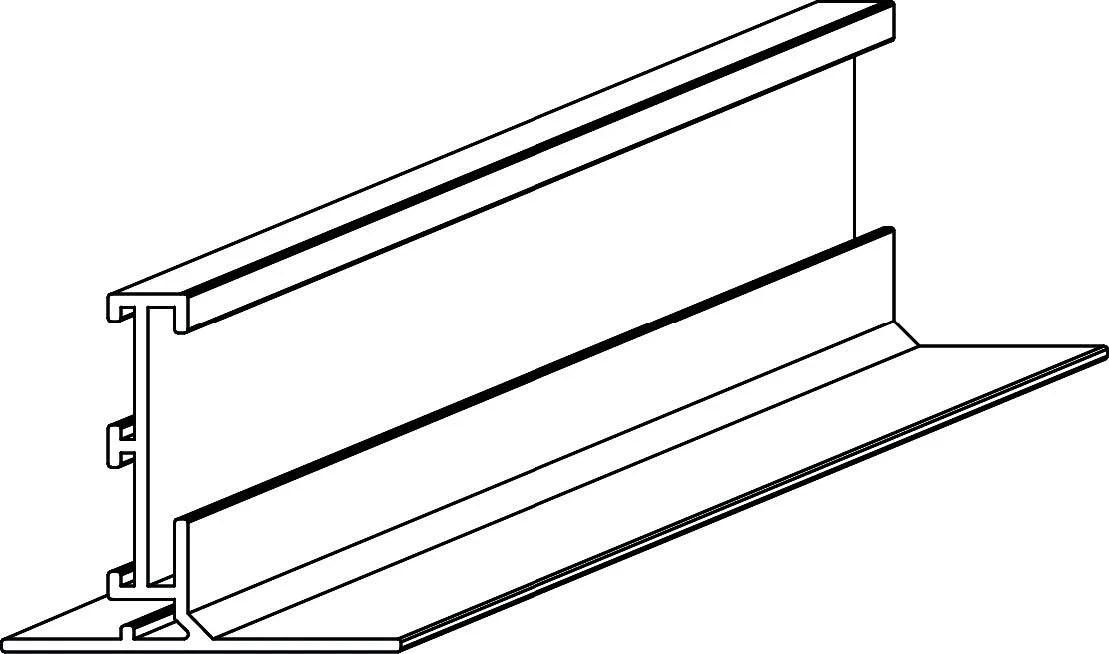

Type 55 - Deep Plaster Frame

Air Diffusion FlowBar - Type 55.jpg

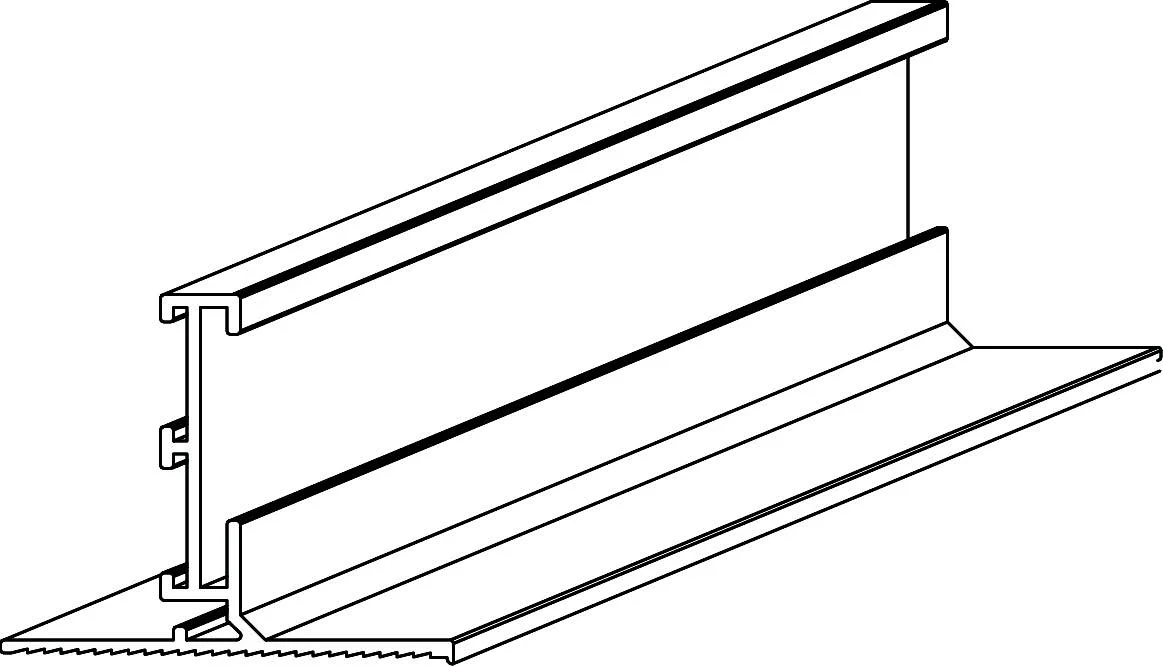

Type 66 - Surface Mounting

Type 11 - Flangeless

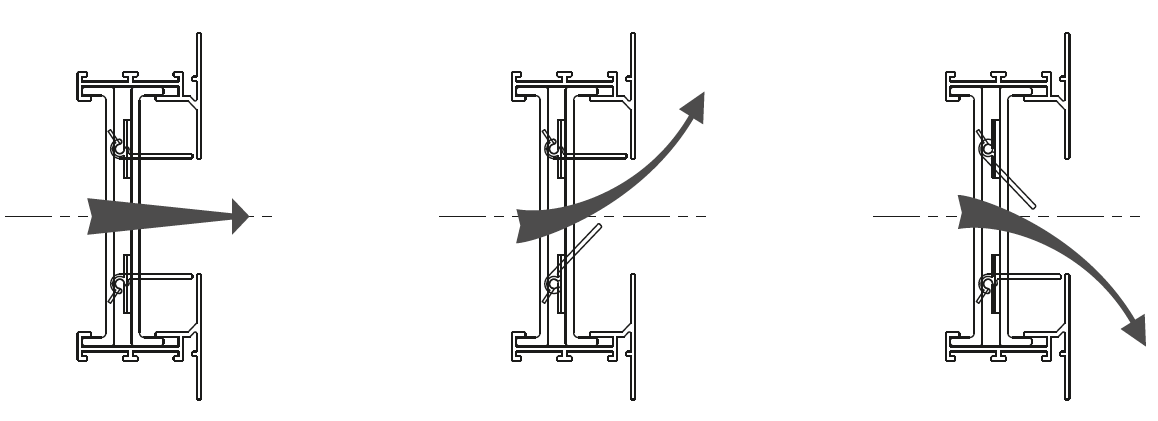

Air Distribution Patterns

Ceiling Mounted. High Throw (HT)

Wall Mounted. Jet Throw (JT)


Curved and Angled Sections

FlowBar is available to be manufactured straight or curved, allowing the creation of stunning visuals that were never before possible.

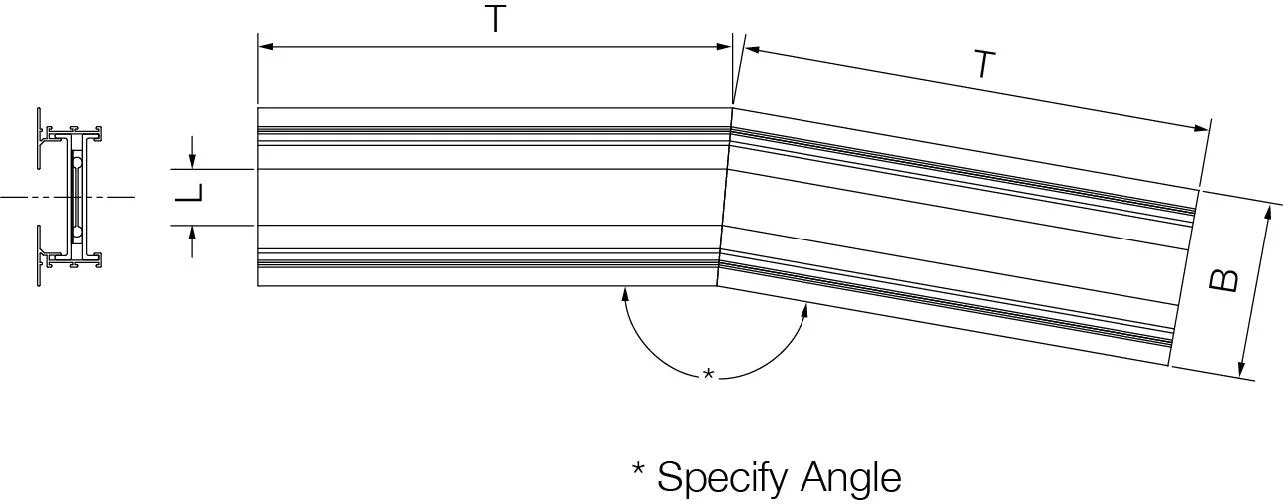

Angled Section

Air Diffusion FlowBar - Angled Section.jpg

Curved Section

Air Diffusion FlowBar - Curved Sections.jpg

Corner Section

Air Diffusion FlowBar - Corner Sections.jpg

Specification

Jet Throw (JT) Series

The FlowBar JT series is sidewall mounted and has jet throw pattern flow controllers to allow the airstream to be jetted in a horizontal direction, whilst fully integrating into the wall system.

Integral pattern controllers are 600mm in length, allowing the airstream to be directed up and down in its sidewall application.

JT pattern controllers allow extended throws in typical high bay applications for heated and/or cooled air, and are useful along perimeter walls where heated air can be directed downward.

High Throw (HT) Series

The FlowBar HT series is primarily designed for ceiling applications and allows the air diffuser to become inconspicuous, whilst fully integrating into the ceiling system.

Integral pattern controllers are 600mm in length, allowing the airstream to be directed left and right for horizontal and vertical airflow.



Finishes and Sizing

FlowBar is available in a white or black painted finish as standard, further finishing options are available on request.

Standard slot sizes are 25mm, 38mm, 51mm, 63.5mm and 76mm with the maximum single section lengths available up to 2400mm for practical purposes.


Case Studies


Product Documents

Title Type Added Link
FlowBar Slot Diffuser Product Brochure Brochures about 2 months ago Download >
FlowBar Installation, Operation and Maintenance IOM about 2 months ago Download >
