Installation Methods For Wall and Ceiling Grilles

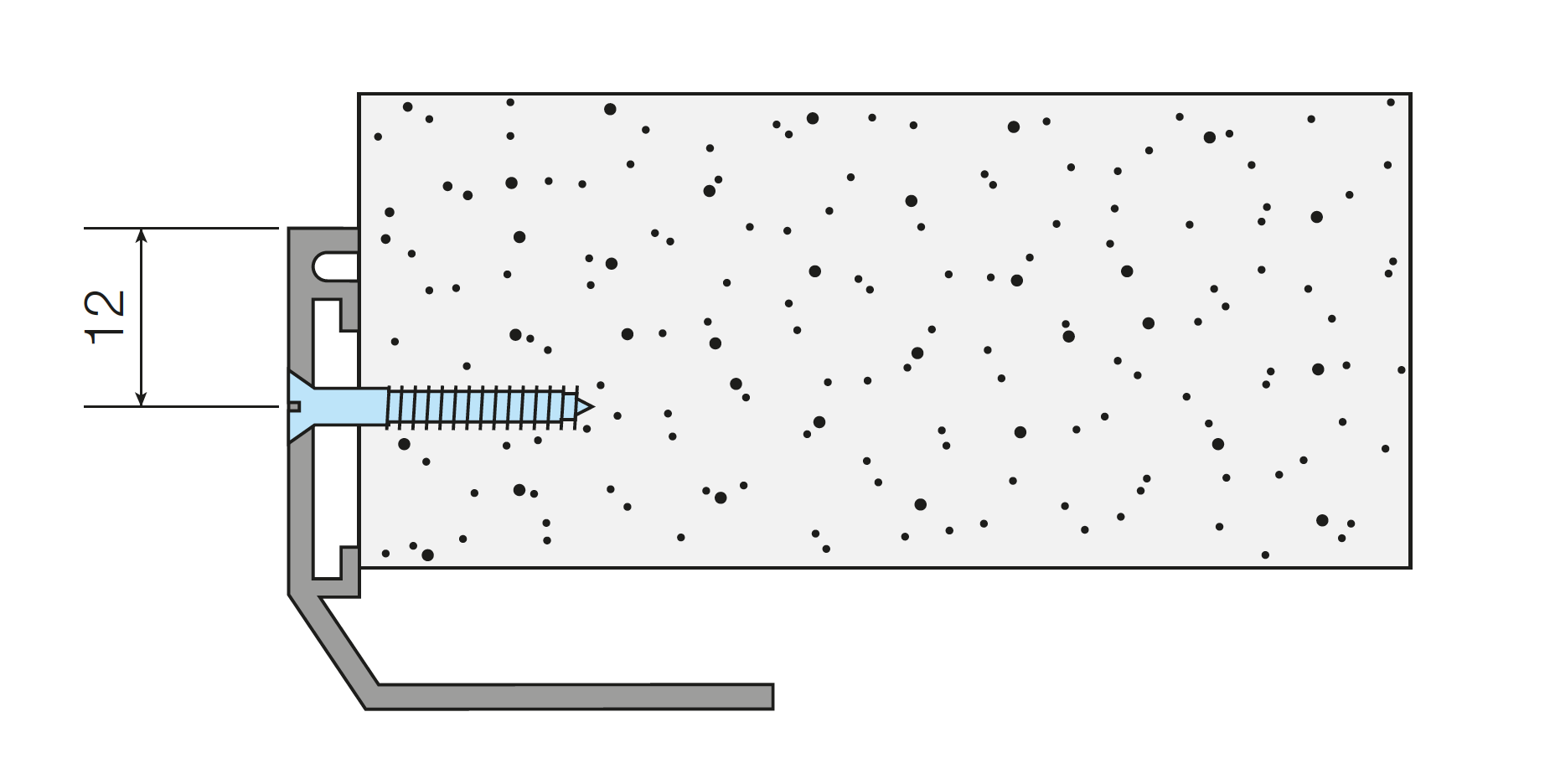

 Type F1

Standard face countersunk holes for screw fixing.


Type F2

Optional spring clips.

Note: For satisfactory fixing require accurately formed opening or duct with firm sides. Not suitable for ceiling or high sidewall installation.

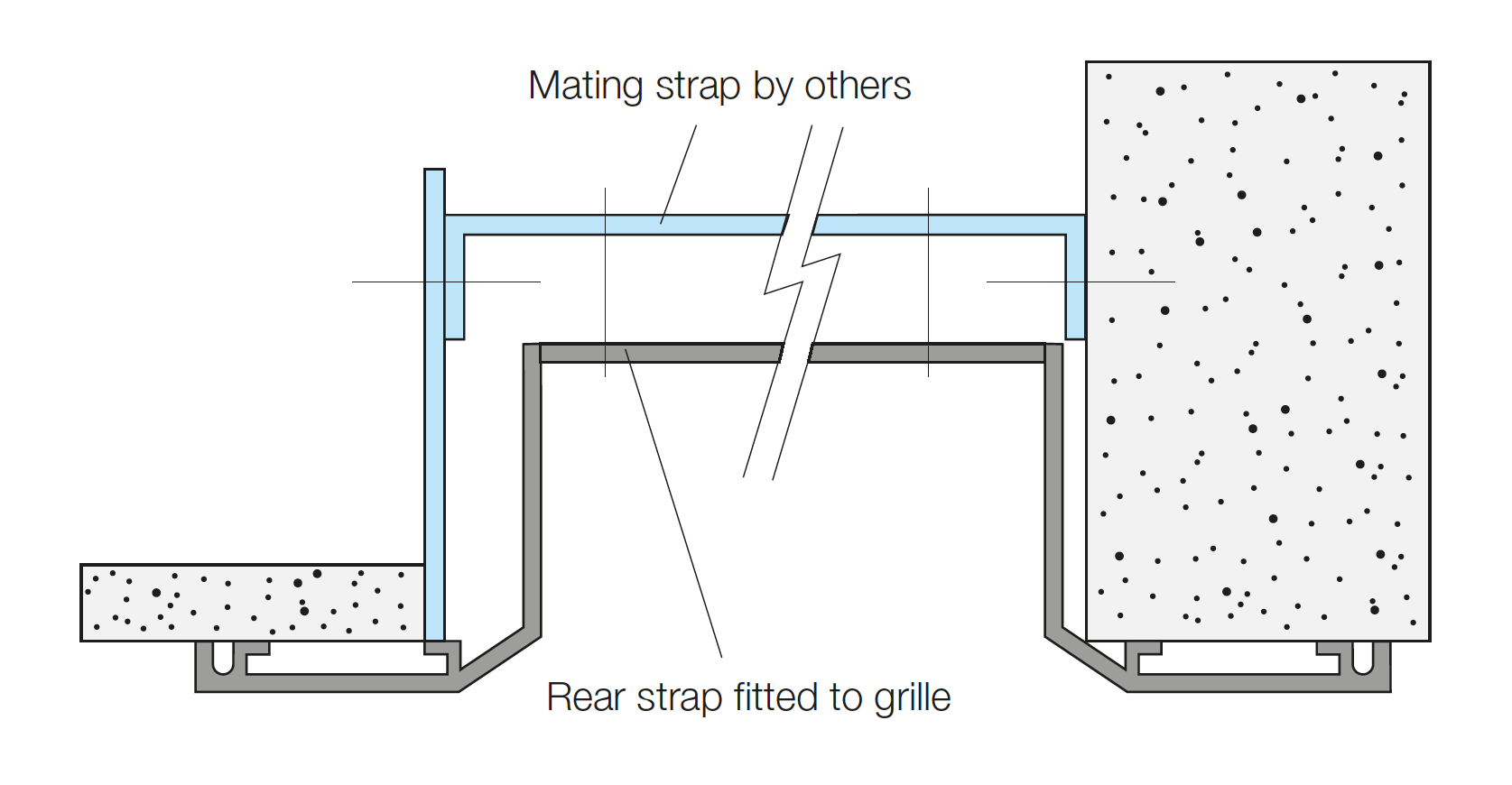

Type F4

Optional rear strap.

Note: Mating strap by others.

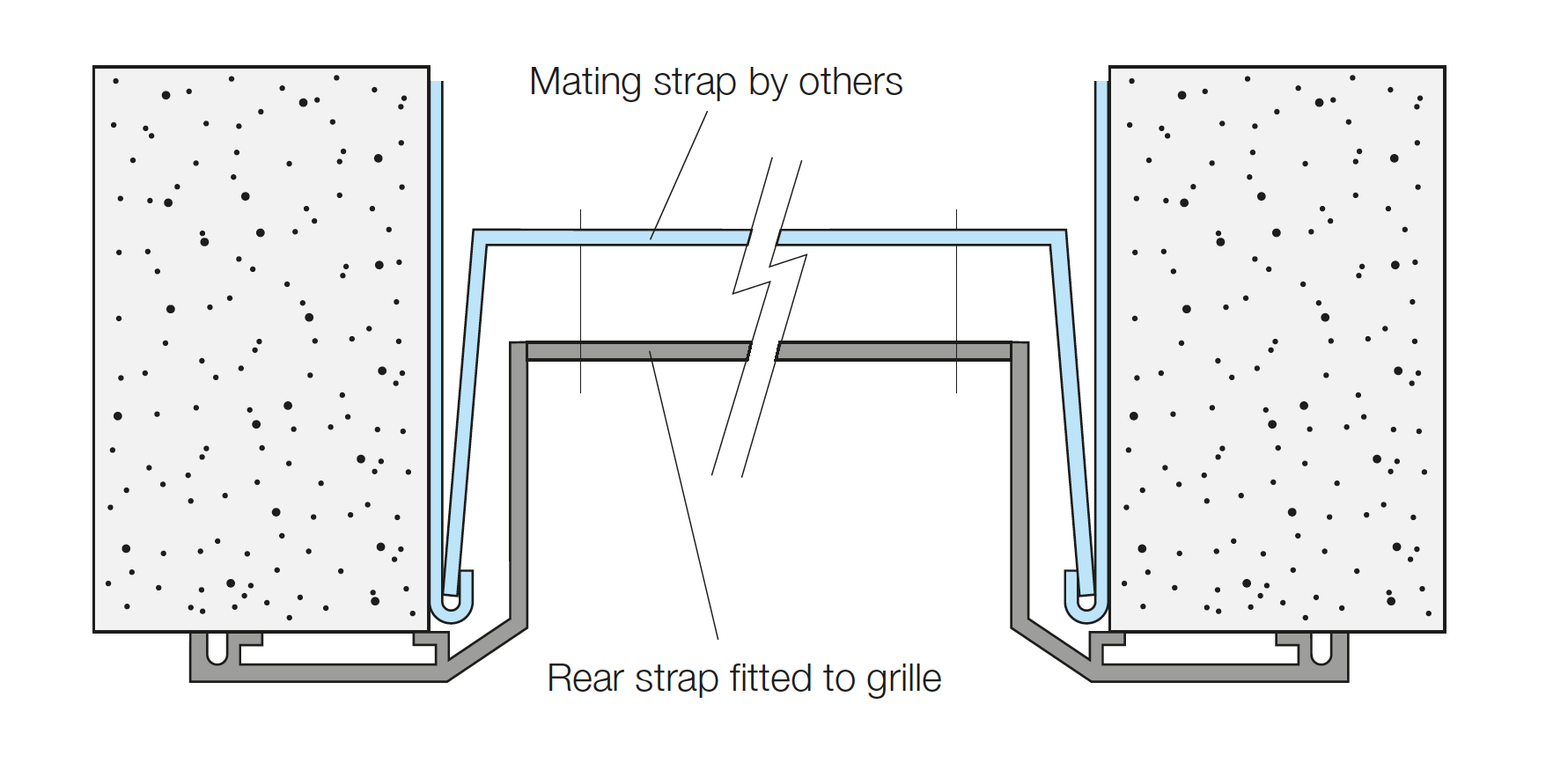

Type F6

Optional rear strap plus mating ‘U’ bracket.

Note: Hemmed duct by others or plenums by us.

Type F6.png

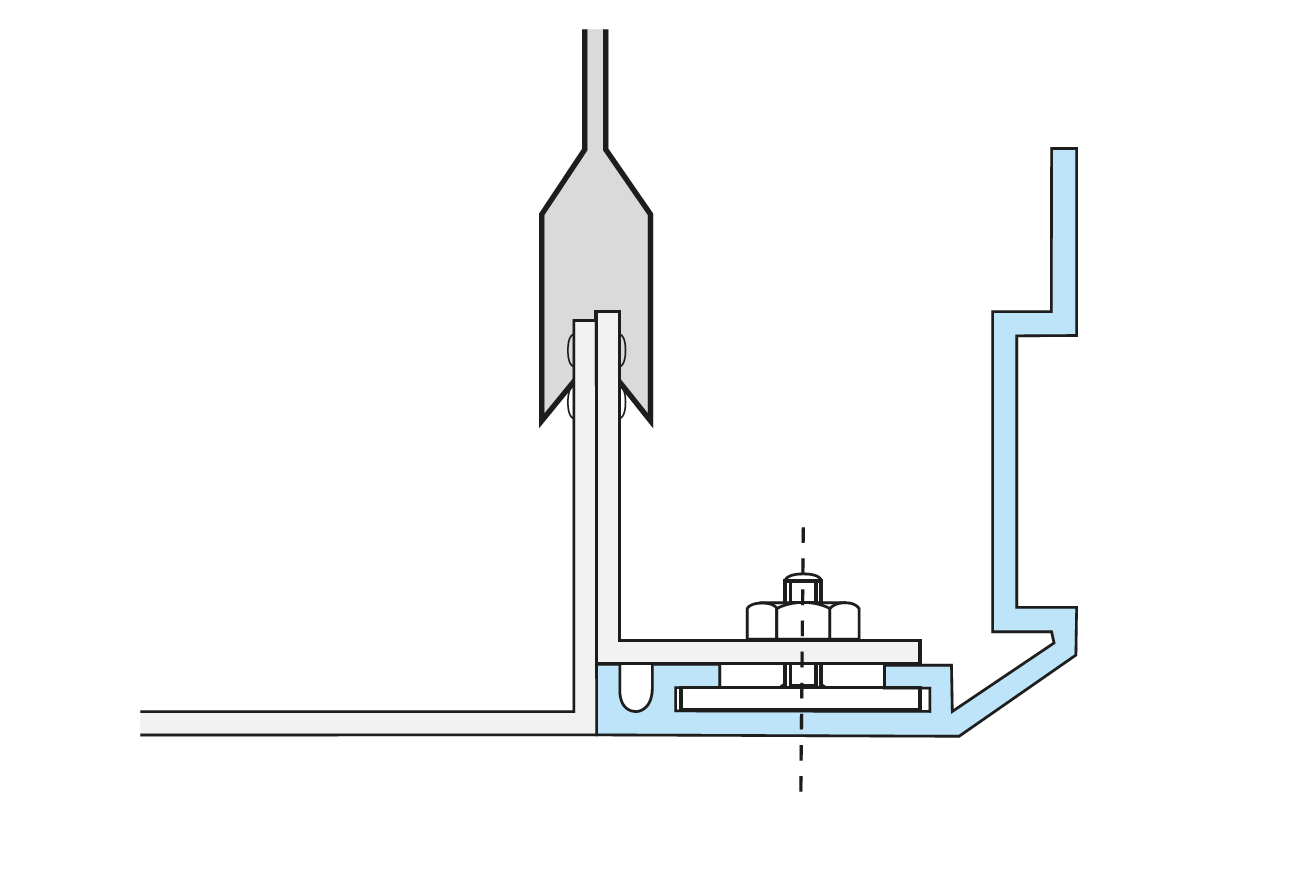

 Type F8 - Ceiling Alignment Clip Fixing

(Details of ceiling system and clip to be supplied).
